Die design

Die design .

High-quality die design is the prerequisite for tool quality assurance and the key to project success.

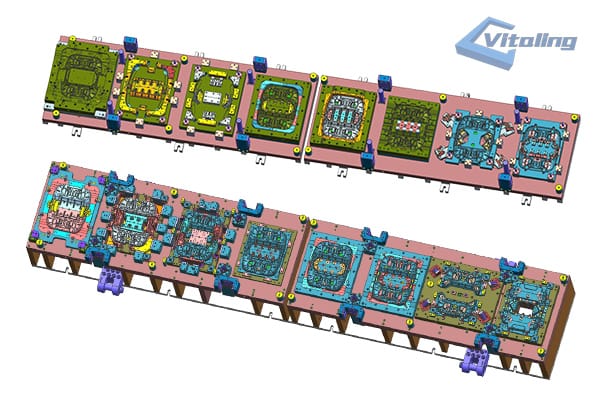

Die design by UG，all shows from 3Ddesign，Also developed software for 3D BOM LIST、DIE DESIGN REFERECNE STUDY、STANDARED FOR EACH CUSTOMER， to keep die design efficiency.

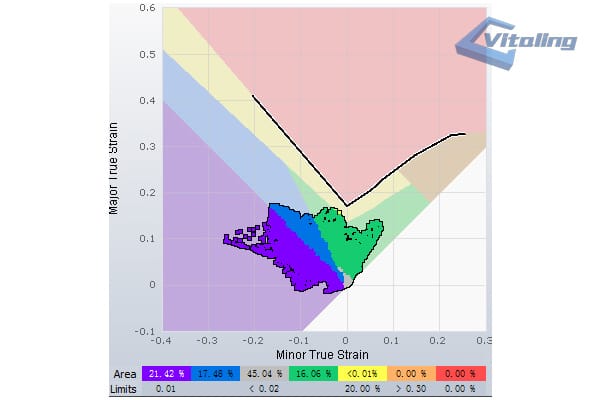

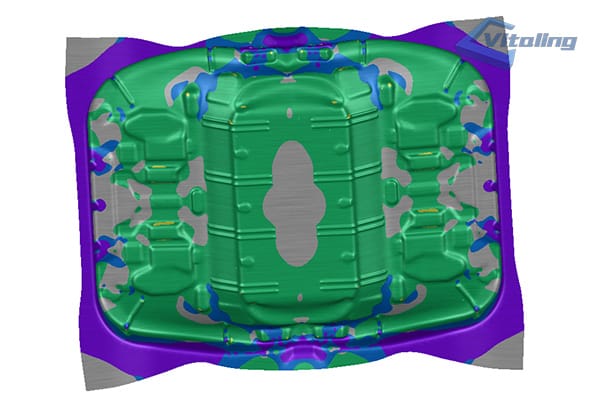

5 people work for CAE , can provide customers with multi-solution material flow analysis and select good solutions. Professional and meticulous preliminary analysis can identify problems in advance and prevent potential risks.
A special inspection list is developed for each customer, and every detail is inspected to ensure design quality.

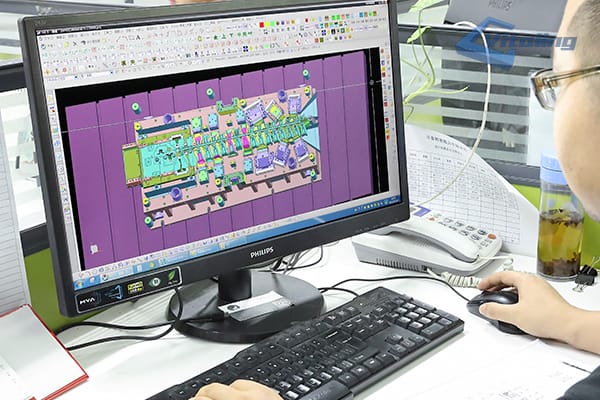

• UG NX 10.0、AutoCAD for die design，Autofrom for CAE simulation.
• Capacity for anual more than 100 sets，8 groups with tool makers.
• Several die manufacturing and design engineers.
• The QC department has an independent quality department, equipped with several parts QE and die following engineers.
• It is equipped with an inspection room, including three-dimensional, projector and other quality inspection equipment.
• It has its own set of tool quality standards with 5 levels, which can meet the life requirements of more than 1 million life time.
